Meister Scale ED

Battery Packs and Chargers

Lithium NanoPhosphate Batteries
Breakthrough in Battery Technology!

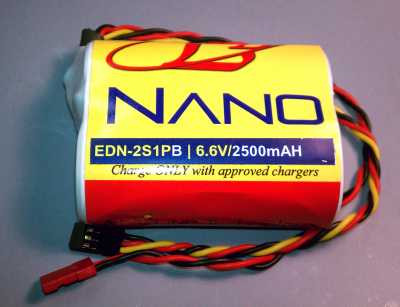

ED-Nano 6.6V 2300mAH - $44.95
EDN-2S1P

ED-Nano (A123) Battery 2S1P with 22AWG Rx connector and JR Node/Balance connector.
Suitable for all Receivers, most do not require a regulator. (Check with your radio manufacturer)
For matching switch, check out our Ultra Switch II ED-Nano
Size: 2.1"W x 2.7"L x 1.1"D
Wt. : 5.5oz. (Compare 5KR-2400SC NiCd: 11oz.)
Use only with approved chargers

ED-Nano 6.6V 4600mAH - $94.95
EDN-2S2P

ED-Nano (A123) Battery 2S2P with 22AWG Rx connector and JR Node/Balance connector
Need more capacity for that BIG 3D ship? Honking 4600mAH and still lighter than a 5KR-2400SC NiCd!
Suitable for all Receivers, most do not require a regulator. (Check with your radio manufacturer)
Size: 2.1"W x 2.7"L x 2.1"D
Wt. : 10oz.
Use only with approved chargers

ED-Nano 6.6V 2300mAH HD - $49.95
EDN-2S1P-HD

ED-Nano (A123) Battery 2S1P Heavy-Duty with 22AWG JR Combo Rx & Node/Balance connector and 16AWG high-current cable, with Deans Ultra connector (up to 25 Amps continuous for high-current charge/discharge)
Suitable for all Receivers, most do not require a regulator. (Check with your radio manufacturer)
Size: 2.1"W x 2.7"L x 1.1"D
Wt. : 5.7oz. (Compare 5KR-2400SC NiCd /w Deans: 12oz.)
Use only with approved chargers

Ultra Switch II ED-Nano - $28.00
EDC-77N

Heavy-Duty, high-current Ultra Switch II for ED-Nano Rx Battery
Max. Current 8A continuous.
Our popular Ultra Switch II is now available matched to our standard ED-Nano 2S1P Rx battery for No-Hassle, plug-and-play use!

Simply plug in your ED-Nano Rx pack to the Ultra Switch II ED-Nano
Plug the Ultra Switch II ED-Nano to two ports your Rx for 8A load capability, or just one port for 4A max.
Balance-Charge the battery using the Ultra Switch II's convenient charge port!
All the great features of the Ultra Switch II plus E-Z ED-Nano installation!!

ED-Nano JST-XH6S-JR Combo Balance-Charge Cord - $19.95
EDC-77N

E-Z, No-Hassle Balance-charging of on-board
ED-Nano (A123) Rx and Ignition batteries
Use with the Ultra Switch ED-Nano for convenient charging, balancing and cycling WITHOUT disconnecting any onboard cables!
Convenient 24" length - no need to dangle the charger off the side of your airplane!ED-Nano JST-XH6S-JR Combo Balance-Charge Cord
Max charge current: 4 Amps
Input:
JST-XH (6S) and Dual Banana Jacks plug into an A123/LiFe-compatible charger e.g.

Xcelorin Balance Adapter Board with Harness - $10.00
LOSB9655

X4 Four-Channel DC Multicharger - $150.00
HRC44151
Needed To Complete:
Power supply (20A minimum)
Overview
The Hitec X4 Multicharger is a four channel computer controlled charger. This compact charger with battery management and integral balancer is simple to use and reliable. It features four identical and independent 50-watt power outputs, for a total output power of 200 watts. Each output can handle up to 15 NiCd/NiMH cells, or up to 6S Lithium pack simultaneously. Four individual balancing ports eliminate the need for a separate balancer when charging Lithium batteries. Equipped with a twin fan cooling system which has an internal sensor for controlling fan speed, the X4 Multicharger charger is both efficient and safe. Charge your batteries and take charge of your hobby.
The Hitec X4 Multicharger offers a complete charging solution for novice and expert RC enthusiasts alike. The multi-tasking versatility of this charger makes it a perfect fit for nitro and electric modelers, regardless of what you drive, hover, float or fly.

X4 AC+ 4 Channel AC/DC Charger - $219.99
HRC44167
Product Description
Key Features

Internal Independent Lithium Battery Balancers
Balancing Individual Cells during Battery Discharging
Charges Most Popular Lithium Batteries
Multiple Lithium Battery Charge Modes
Overview:
Hitec has raised the bar on the X4 and equipped it with a built-in AC power supply. The X4 AC Plus has four-port computer controlled capability with a built-in 22 amp power supply which can be powered by standard 120 volt AC household current. Simple to use and utterly reliable, this compact charger with battery management and integral balancer features four identical and independent 50-watt power outputs, for a total output power of 200 watts. Each port of the X4 AC Plus can handle up to a 6S Lithium pack, 15 NiCd/NiMH cells or 6-12 volt lead acid batteries. Four individual balancing ports eliminate the need for a separate balancer when charging Lithium batteries. Its twin fan cooling system with an internal sensor for controlling fan speed provides the utmost in efficiency and safety. The X4 AC Plus can accept a variety of power inputs including the option of attaching it to a 12-volt car battery or a 11–15 volt (20 amp minimum) DC power supply.
The Hitec X4 AC Plus charger offers a complete charging solution for novice and expert RC enthusiasts alike. The multi-tasking versatility of this new charger makes it a perfect fit for nitro and electric modelers, regardless of what you drive, hover, float or fly.
